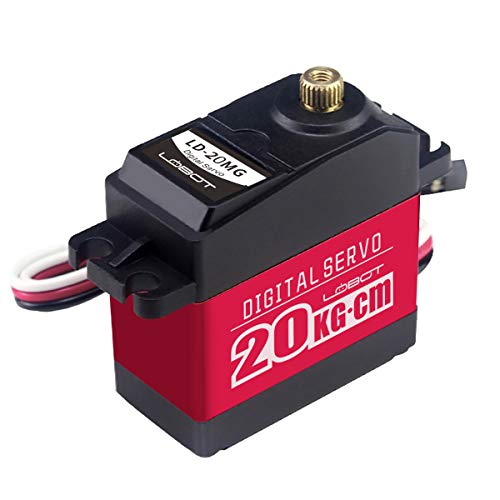

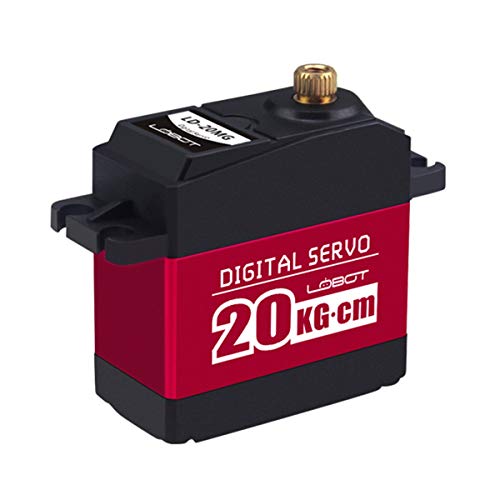

LewanSoul LD-20MG Full Metal Gear Standard Digital Servo Moteur with 20kg High Torque, Aluminium Case for Robot RC Car…

Specifications:
Weight: 65g(2.32OZ)

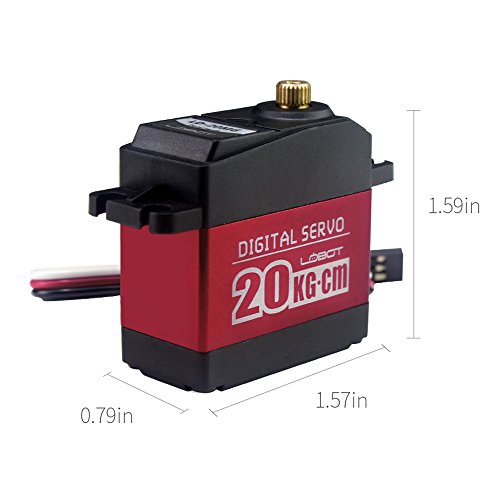

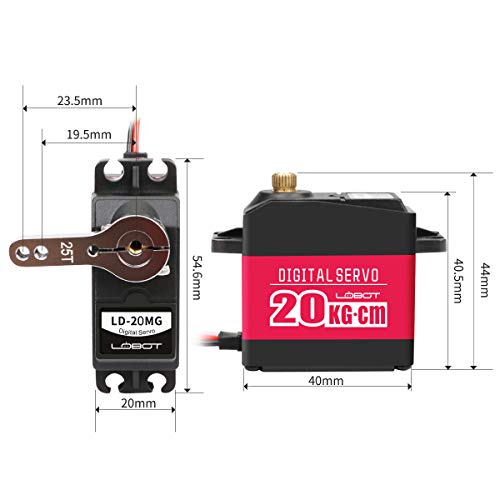

Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)
Speed: 0.16sec/60°(7.4V)
Torque: 20 kg·cm (277.6 oz·in) @6.6V
Working Voltage: 6-7.4V
Min Working Current: 1A
No-Load Current: 100mA
# Spline: 25T(6mm in diameter)
The servo wire: 30cm(11.8inch) in length

Control Specifications:
Control Method: PWM
Pulse Width: 500~2500
Duty Ratio: 0.5ms~2.5ms
Pulse Period: 20ms

Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can’t turn up to claimed degree

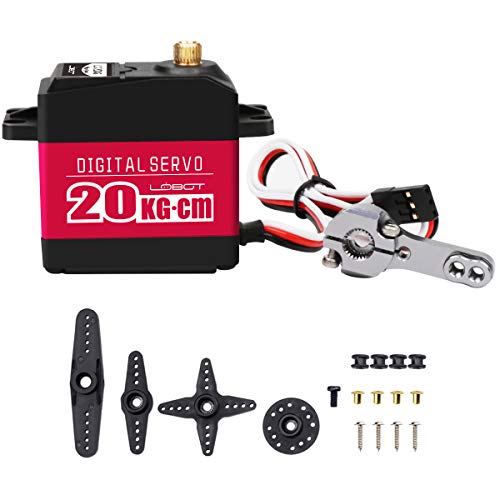

Package Contents:
1 x Digital servo

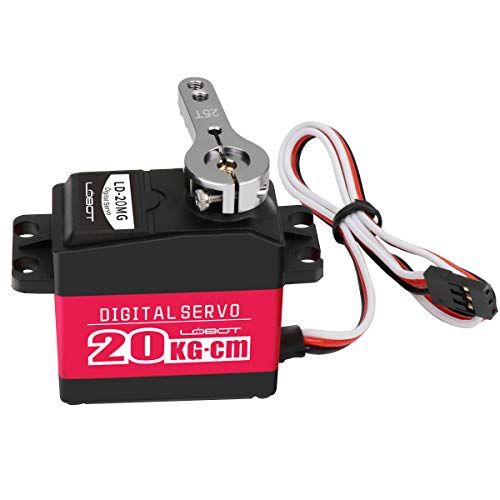

1 x Servo horn kit(as shown in the figure)

If you have any questions, please feel free to contact us, we will help you as soon as possible

Note:
Please be sure to avoid locked-rotor when using servo, locked-rotor means that artificially or machine obstructs the servo to rotate normally, the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases, servo will burn out.

Notice for use:
1. Connect GND is necessary.
2. It’s recommended that use lithium polymer battery with high rate discharge(min 5C), please don’t use dry battery.
3. Please use a short and thick power cord, don’t use Dupont cord
4. Not compatible for redcat thunder drift rc car

20kg large torque. 20 kg·cm (277.6 oz·in) @ 6.6V. Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)

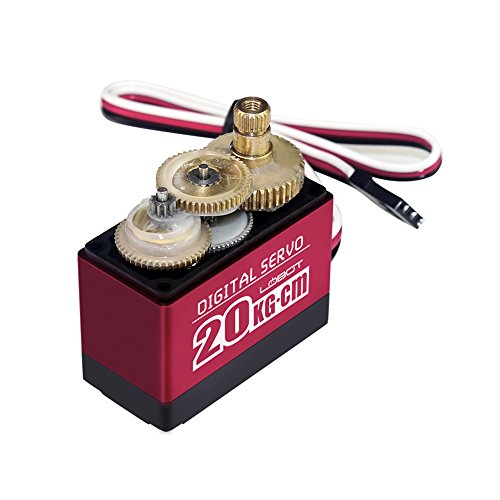

Full metal gear. it’s better for accuracy, service life has been greatly increased
Aluminium Case. Enhance the heat dissipation, ensure that servo motor can work well
Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.
180 degree rotation. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off
